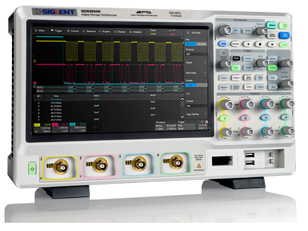

SDS5000X Series Super Phosphor Oscilloscopes

  • 1 GHz, 500 MHz, 350 MHz models
  • Real-time sampling rate up to 5 GSa/s
  • Record length up to 250 Mpts
  • Serial bus triggering and decoder, supports I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S and MIL-STD-1553B
  • Capacitive touch screen supports multi-touch gestures

Options:

  • SDS-5000X-PA Power Analysis Option- Power Quality, Current Harmonics, Inrush Current, Switching Loss, Slew Rate, Modulation, Output Ripple Turn On/ Turn Off Transient Response Efficiency, Power Supply Rejection Ratio (PSRR) Control Loop Response (Standard function also available without PA option)
  • DF2001A Deskew fixture
  • SDS-5000X-4BW05 350 MHz to 500 MHz bandwidth upgrade (4-ch model) *
  • SDS-5000X-2BW05 350 MHz to 500 MHz bandwidth upgrade (2-ch model) *
  • SDS-5000X-4BW10 500 MHz to 1 GHz bandwidth upgrade (4-ch model)
  • SDS-5000X-2BW10 500 MHz to 1 GHz bandwidth upgrade (2-ch model)
  • SDS-5000X-FG Waveform generator software
  • SAG1021 25 MHz USB function/arbitrary waveform generator
  • SDS-5000X-16LA 16 digital channels (software)
  • SPL2016 16-channel logic probe SDS-5000X-I2S I2S trigger & decode
  • SDS-5000X-CANFD CAN FD trigger & decode
  • SDS-5000X-FlexRay FlexRay trigger & decode
  • SDS-5000X-1553B MIL-STD-1553B trigger & decode
  • STB3 STB3 demo signal source
  • SAP1000 1 GHz active probe
  • HPB4010 High voltage probe

Siglent Current Probes

  • CPL5100 Bandwidth: DC-600 kHz; Maximum continuous current 70.7 Arms
  • CP4020 Bandwidth: 100 kHz; Maximum continuous current 20 Arms
  • CP4050 Bandwidth: 1 MHz; Maximum continuous current 50 Arms
  • CP4070 Bandwidth: 150kHz; Maximum continuous current 70 Arms
  • CP4070A Bandwidth: 300 kHz; Maximum continuous current 70 Arms
  • CP5030 Bandwidth: 50 MHz; Maximum continuous current 30 Arms
  • CP5030A Bandwidth: 100 MHz; Maximum continuous current 30 Arms
  • CP5150 Bandwidth: 12 MHz; Maximum continuous current 150 Arms
  • CP5500 Bandwidth: 5 MHz; Maximum continuous current 500 Arms

Siglent Voltage Probes

  • DPB1300 Bandwidth: 50 MHz; Max Input: 600 V CATIII, 1000 V CATII
  • DPB4080 Bandwidth: 50 MHz; Maximum input differential voltage 800 V(DC + Peak AC)
  • DPB5150 Bandwidth: 70 MHz; Maximum input differential voltage 1500 V(DC + Peak AC)
  • DPB5150A Bandwidth: 100 MHz; Maximum input differential voltage 1500 V(DC + Peak AC)
  • DPB5700 Bandwidth: 70 MHz; Maximum input differential voltage 7000 V(DC + Peak AC)
  • DPB5700A Bandwidth: 100 MHz; Maximum input differential voltage 7000V(DC + Peak AC)

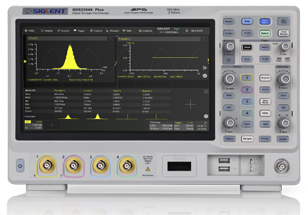

SDS2000X Plus Super Phosphor Oscilloscopes

  • 100 MHz, 200 MHz, 350 MHz ( upgradable to 500 MHz )  models
  • Real-time sampling rate up to 2 GSa/s
  • Record length up to 200 Mpts
  • Serial bus triggering and decoder, supports I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S and MIL-STD-1553B
  • Provide 10 bit mode, Vertical and Horizontal Zoom
  • Capacitive touch screen supports multi-touch gestures

Options:

  • SDS2000XP-FG Waveform generator option (software)
  • SDS2000XP-16LA 16 digital channels (software)
  • SPL2016 16-channel logic probe
  • SDS2000XP-PA Power Analysis (software)
  • DF2001A Power Analysis deskew fixture
  • SDS2000XP-I2S I 2S trigger & decode (software)
  • SDS2000XP-1553B MIL-STD-1553B trigger & decode (software)
  • SDS2000XP-FlexRay FlexRay trigger & decode (software)
  • SDS2000XP-CANFD CAN FD trigger & decode (software)
  • SDS2000XP-4BW02 100 MHz to 200 MHz bandwidth upgrade (4-ch model) (software)
  • SDS2000XP-4BW03 200 MHz to 350 MHz bandwidth upgrade (4-ch model) (software)
  • SDS2000XP-4BW05 350 MHz to 500 MHz bandwidth upgrade (4-ch model) (software)
  • SDS2000XP-2BW03 100 MHz to 350 MHz bandwidth upgrade (2-ch model) (software)

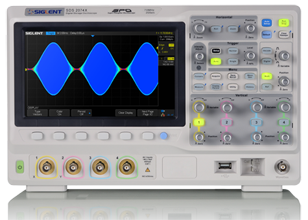

SDS2000X Series Super Phosphor Oscilloscopes

  • 70, 100, 200, 300 MHz models
  • Real-time sampling rate up to 2 GSa/s
  • New generation of SPO technology
  • Waveform capture rate up to 140,000 wfm/s (normal mode), and
    500,000 wfm/s (sequence mode)
  • Supports 256-level intensity grading and color temperature display
  • Record length up to 140 Mpts
  • Digital trigger system

Options:

  • SDS-2000X-DC IIC, SPI, UART/RS232, CAN, LIN Decoder
  • SDS-2000X-FG 25MHz Function/Arbitrary Waveform Generator
  • SDS-2000X-PA Power Analyze Software
  • SDS-2000X-16LA 16 Digital Channels(Software)
  • SPL2016 16 Channel Logic Probe ISFE Isolated Front End
  • STB STB3
  • DF2001A Power analysis Deskew Fixture
  • HPB4010 High Voltage Probe
  • CP4020/CP4050/CP4070/ CP4070A/CP5030/CP5030A/CP5150/CP5500- Current Probe
  • DPB4080/DPB5150/ DPB5150A/DPB5700/ DPB5700A- High Voltage Differential Probe

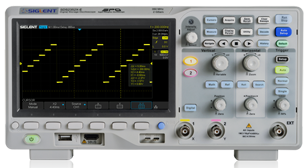

SDS2000X-E Series Super Phosphor Oscilloscopes

  • 200MHz, 350MHz bandwidth models
  • Real-time sampling rate up to 2 GSa/s
  • The newest generation of SPO technology
  • Waveform capture rate up to 110,000 wfm/s (normal mode), And 400,000 wfm/s (sequence mode)
  • Supports 256-level intensity grading and color display modes
  • 7-inch TFT-LCD display and 10 one-button menus
  • Record length up to 28 Mpts
  • Digital trigger system
  • Bode plot

Options:

  • Isolated Front End- ISFE
  • STB Demo Source- STB-3
  • High Voltage Probe- HPB4010
  • Current Probes- CP4020/CP4050/CP4070/CP4070A/CP5030/CP5030A/CP5150/CP5500
  • Differential Probes- DPB4080/DPB5150/DPB5150A/DPB5700/DPB5700A
  • Rack Mount- SDS1X-E-RMK

SDS1000X/X+ Series Super Phosphor Oscilloscopes

  • 100, 200 MHz bandwidth models
  • Real-time sampling rate up to 1 GSa/s
  • X+ series features MSO and internal AWG options
  • Waveform capture rate up to 60,000 wfm/s (normal mode), and 400,000 wfm/s (sequence mode)
  • Supports 256-level intensity grading and color display modes
  • Record length up to 14 Mpts
  • Digital trigger system

Options:

  • I2C,SPI,UART/RS232,CAN,LIN Decoder SDS-1000X-DC
  • 16 Channels MSO (Software) SDS-1000X-LA
  • 16 Digital Channels Logic Probe SPL1016
  • Isolated Front End ISFE
  • STB Demo Source STB
  • High Voltage Probe HPB4010
  • Current Probe CP4020/CP4050/CP4070/ CP4070A/CP5030/CP5030A/CP5150/CP5500
  • Differential Probe DPB4080/DPB5150/DPB5150A/DPB5700/DPB5700A

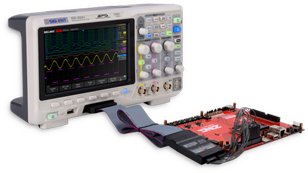

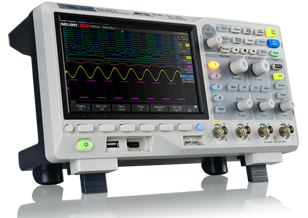

SDS1000X-E Series Super Phosphor Oscilloscopes

  • 100 and 200 MHz bandwidth models
  • 2 or 4 analog channels
  • 16 logic/MSO (optional on 4 channel only)
  • Real-time sampling rate up to 1 GSa/s
  • Math co-processor speeds front panel operation
  • Waveform capture rate up to 100,000 wfm/s (normal mode),
    and 400,000 wfm/s (sequence mode)
  • Record length up to 14 Mpts, 1 Mpt FFT
  • On-screen Bode plot and web-browser control (standard on 4 channel only)
  • WiFi control (optional on 4 channel only)

Options:

  • USB WIFI Adapter (four channel series only) TL_WN725N
  • Isolated Front End ISFE
  • STB Demo Source STB-3
  • High Voltage Probe HPB4010
  • Current Probes CP4020/CP4050/CP4070/CP4070A/CP5030/CP5030A/CP5150/CP5500
  • Differential Probes DPB4080/DPB5150/DPB5150A/DPB5700/DPB5700A
  • Rack Mount SDS1X-E-RMK

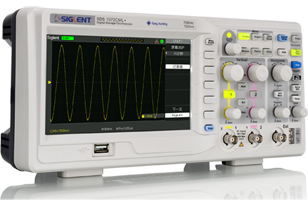

SDS1000CML+ Series Digital Storage Oscilloscopes

  • 70, 100, 150 MHz bandwidth models
  • Real-time sampling rate up to 1 GSa/s, Equivalent-time sampling rate up to 50 GSa/s
  • Memory Depth up to 2 Mpts
  • Trigger types: Edge, Pulse, Video, Slope, Alternate
  • Waveform math functions:+, -, *, /, and FFT
  • 6 digit frequency counter

Options:

  • Isolated Front End ISFE
  • STB Demo board STB
  • High Voltage Probe HPB4010
  • Current Probe CP4020/CP4050/CP4070/CP4070A/CP5030/CP5030A/CP5150/CP5500
  • Differential Probe DPB4080/DPB5150/DPB5150A/DPB5700/DPB5700A

SDS1000DL+ Series Digital Storage Oscilloscopes

  • 50 MHz bandwidth models
  • Real-time sampling rate up to 500 MSa/s, Equivalent-time sampling rate up to 50 GSa/s
  • Memory Depth up to 32 kpts
  • Trigger types: Edge, Pulse, Video, Slope, Alternate
  • Waveform math functions:+, -, *, /, FFT
  • 6 digit frequency counter

Options:

  • Isolated Front End ISFE
  • STB Demo board STB
  • High Voltage Probe HPB4010
  • Current Probe CP4020/CP4050/CP4070/CP4070A/CP5030/CP5030A/CP5150/CP5500
  • Differential Probe DPB4080/DPB5150/DPB5150A/DPB5700/DPB5700A

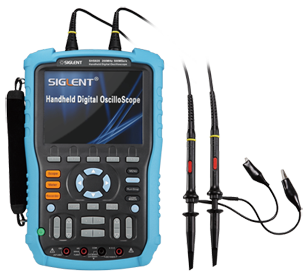

SHS800 Series Handheld Digital Oscilloscopes

High-performance oscilloscope

  • Bandwidths: 60, 100, 150, and 200 MHz; Memory depth: to 2 Mpts
  • Real-time sampling rate: 1 GSa/s; Equivalent sampling rate: 50 GSa/s
  • Includes integrated 3 1/2 digit multimeter

Options:

Data recorder function

  • 7 Mpt internal storage, up to 18 hours of recording time
  • USB port, up to 3000 hours recording time
  • Record, replay and zoom functions supported

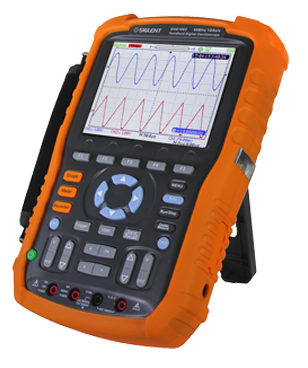

SHS1000 Series Isolated Handheld Digital Oscilloscopes

  • Completely isolated oscilloscope input channels, including oscilloscope and multimeter channels
  • Oscilloscope isolation level: CAT II 1000 V and CAT III 600 V
  • Quick waveform printing and USB storage
  • 60/100 MHz bandwidths, 2 input channels, 2 Mpt memory depth

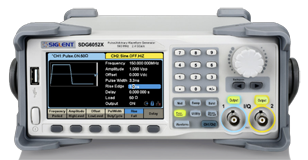

SDG6000X Series Pulse/Arbitrary Waveform Generator

  • Dual-Channel, 500 MHz maximum bandwidth, 20 Vpp maximum output amplitude, high fidelity output with 80 dB dynamic range
  • High-performance sampling system with 2.4 GSa/s sampling rate and 16-bit vertical resolution
  • EasyPulse circuit lowers jitter and increases pulsed performance
  • Create baseband and IF IQ modulated waveforms (optional)

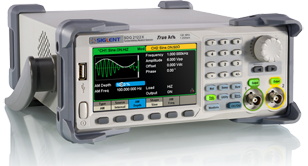

SDG2000X Series Function/Arbitrary Waveform Generators

  • Dual-channel, 120 MHz maximum bandwidth, 20 Vpp maximum output amplitude, high fidelity output with 80 dB dynamic range
  • High-performance sampling system with 1.2 GSa/s sampling rate and 16-bit vertical resolution. No detail in your waveforms will be lost
  • Innovative TrueArb technology supports user-defined waveforms from 8 to 8 Mpts and user-defined sample rate from 1 μSa/s to 75 MSa/s
  • Large Touch Screen Display
  • Easily combine waveforms through a single output, including noise and arbitrary waveforms

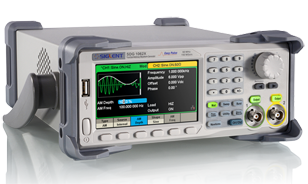

SDG1000X Series Function/Arbitrary Waveform Generators

  • Dual-channel, with bandwidth up to 60 MHz, and amplitude up to 20 Vpp
  • 150 MSa/s sampling rate, 14-bit vertical resolution, and 16 kpts waveform length
  • Innovative EasyPulse technology, capable of generating lower-jitter Pulse waveforms, brings a wide range and extremely high precision in pulse width and rise/fall times adjustment
  • NEW: Innovative TrueArb technology supports user-defined waveforms from 2 to 16 kpts and user-defined sample rate from 1 μSa/s to 30 MSa/s

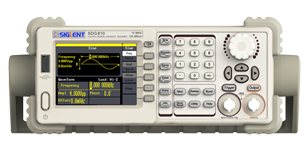

SDG800 Series Function/Arbitrary Waveform Generators

  • Advanced DDS technology, 125 MSa/s sampling rate, 14-bit vertical resolution
  • Single channel output, 5 standard waveforms, 46 built-in arbitrary waveforms (including DC)
  • Complete modulation functions: AM, DSB-AM, FM, PM, FSK, ASK, PWM, linear/logarithmic sweep, and burst

SPD3303X / SPD3303X-E Series Programmable DC Power Supplies

  • 3 independently controlled and isolated outputs: Two 32 V/3.2 A, one 2.5 V / 3.3 V / 5 V / 3.2 A × 1, total 220 W
  • 5 digit Voltage/4 digit Current Display, Minimum Resolution: 1 mV/1 mA (SPD3303X)
  • Timing function provides programmed output steps
  • 4.3 inch true color TFT- LCD 480 x 272 display
  • 3 types of output modes: independent, series (60 V max), and parallel (6.4 A max)

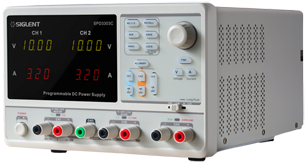

SPD3303C Series Programmable DC Power Supplies

  • 3 independent high precision outputs: two 32 V /3.2 A, one 2.5 V / 3.3 V / & 5 V / 3.2 A, total 220 W power
  • 4 digit voltage and 3 digit current display, min resolution: 10 mV, 10 mA
  • Three output modes: independent, series and parallel
  • 100/120/220/230 V compatible design, to meet the needs of various power grids

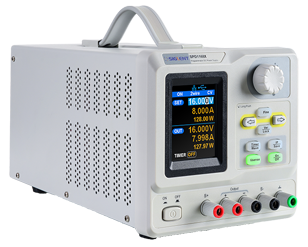

SPD1000X Series Programmable DC Power Supply

  • Single channel high-precision programmable voltage output
  • SPD1068X: 16 V / 8 A,total power up to 128 W
  • SPD1305X: 30 V / 5 A,total power up to 150 W
  • Stable, reliable, Low ripple and noise:≤ 350 uVrms/3
    mVpp; < 2 mArms
  • Fast transient response time: < 50 μs
  • 5 digit Voltage, 4 digit Current Display, Minimum
    Resolution: 1 mV/1 mA
  • 2.8 inch true color TFT- LCD 240*320 display
  • 2 types of output modes:Two-wire output mode, 4-wire
    compensation output mode,Max. compensation 1 V

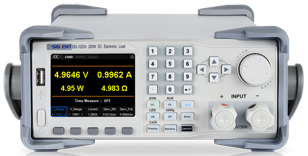

SDL1000X Series Programmable DC Electronic Load

  • SDL1020X (Single channel ): DC 150 V/30 A, total power up to 200 W
  • SDL1030X (Single channel ): DC 150 V/30 A, total power up to 300 W
  • 4 static modes / Dynamic mode: CC/CV/CR/CP
  • Min. readback resolution: 0.1 mV, 0.1 mA
  • Adjustable current rise time range: 0.001 A/us~2.5 A/us

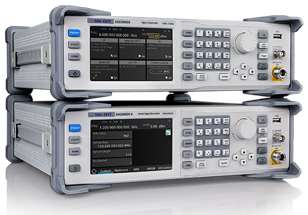

SSG5000X Series of Signal Generators

  • Frequency up to 4 GHz/6 GHz
  • 0.001 Hz frequency setting resolution
  • Maximum output power up to +26 dBm (typ.)
  • Phase Noise: -120 dBc/ Hz @ 1 GHz, 20 kHz offset (typ.)
  • Single pulse, double pulse and pulse train generator (option)

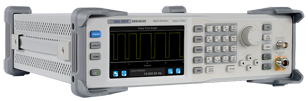

SSG3000X Series of Signal Generators

  • Frequency up to 2.1 GHz/3.2 GHz
  • Maximum level up to +20 dBm (typ.)
  • Level output from -110 dBm to +13 dBm
  • Level accuracy ≤0.7 dB (typ.)
  • Standard AM & FM & PM & pulse modulation
  • Pulse train Generator (option)

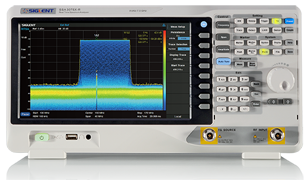

SSA3000X-R real-time spectrum analyzers

  • Spectrum Analyzer Frequency Range from 9 kHz up to 5.0 GHz / 7.5 GHz
  • -165 dBm/Hz Displayed Average Noise Level (Typ.)
  • -98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
  • Level Measurement Uncertainty < 0.7 dB (Typ.)
  • Up to 40 MHz Real Time Analysis Bandwidth
  • Web Browser Remote Control on PC and Mobile Terminals and File Operation

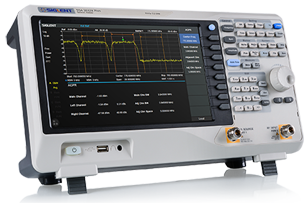

SSA3000X Plus Series Spectrum Analyzers

  • Frequency Range from 9 kHz up to 2.1 GHz / 3.2 GHz / 7.5 GHz
  • -165 dBm/Hz Displayed Average Noise Level (Typ.)
  • -98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
  • Total Amplitude Accuracy < 0.7 dB
  • 10.1 lnch Multi-Touch Screen, Mouse and Keyboard supported
  • Web Browser Remote Control on PC and Mobile Terminals and File Operation

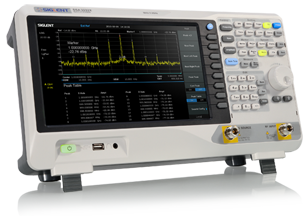

SSA3000X Series Spectrum Analyzers

  • All-Digital IF Technology
  • Frequency Range from 9 kHz to 2.1/3.2 GHz
  • -161 dBm/Hz Displayed Average Noise Level (Typ.)
  • -98 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
  • Total Amplitude Accuracy < 0.7 dB
  • 1 Hz Minimum Resolution Bandwidth (RBW)
  • Tracking generator (TG) is currently included at no charge

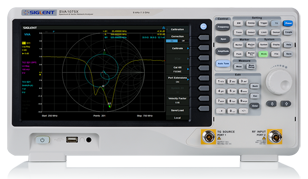

SVA1000X Spectrum & Vector Network Analyzer

  • Vector Network Analysis from 10 MHz – 1.5
    GHz / 100 kHz – 3.2/7.5 GHz (Now included as standard)
  • Distance-to-fault (Optional)
  • Frequency Range from 9 kHz to 1.5 / 3.2 / 7.5 GHz  (Spectrum Analyzer mode)
  • -156 dBm/Hz / -161 dBm/Hz / -165 dBm/Hz Displayed Average Noise Level (Typ.)
  • -99 dBc/Hz @10 kHz Offset Phase Noise (1 GHz, Typ.)
  • 1 Hz Minimum Resolution Bandwidth (RBW)

SDM3065X 6 ½ Digits Dual-Display Digital Multimeters

  • Real  6½ digits readings resolution (2,200,000 counts)
  • 1 Gb Nand flash size, Mass storage configuration files and data files
  • True-RMS AC Voltage and AC Current measuring
  • Standard interfaces: USB Device, USB Host, LAN (Optional Accessories: USB-GPIB Adapter)
  • Optional Scanner for multipoint measurements (-SC part number)

SDM3055 5 ½ Digits Dual-Display Digital Multimeters

  • Real 5½ digits readings resolution ( 240, 000 counts )
  • Up to 150 rdgs/s measurement speed
  • True-RMS AC Voltage and AC Current measuring
  • 1 Gb Nand flash size, Mass storage configuration files and data files
  • Optional Scanner for multipoint measurements (-SC part number)

SDM3045X 4 1/2 Digits Dual-Display Digital Multimeter

  • Real 4½ digit (66,000 count) readings resolution
  • Up to 150 rdgs/s measurement speed
  • True-RMS AC Voltage and AC Current measuring
  • 1 Gb NAND flash size, Mass storage configuration files and data files
  • Built-in cold terminal compensation for thermocouple
  • With easy, convenient and flexible PC software: EasyDDM
sales enquiry button
