NVIDIA JETSON FAMILY

The AI revolution is transforming industries, reaching products that are smaller and more affordable than ever before. But many companies have been constrained by the challenges of size, power, and AI compute density—until now.

The high-performance, low-power NVIDIA® Jetson™ platform gives you real-time artificial intelligence (AI) performance where you need it most—at the edge. Processing of complex data can now be done on-board small, power-efficient devices, so you can count on fast, accurate inference in network-constrained environments.

NVIDIA Jetson Developer Kits and modules, together with the NVIDIA JetPack™ SDK, provide everything you need to develop and deploy applications for multiple use cases through one unified software architecture. With a complete software stack, operating system, and suite of development tools designed for faster time-to-market, the NVIDIA Jetson platform dramatically reduces software development costs and enables scalable AI strategies for autonomous machines.

NVIDIA JETSON Nano

SYSTEM SPECIFICATIONS
GPU 128-core Maxwell
CPU Quad-core ARM A57 @ 1.43 GHz
Memory 4 GB 64-bit LPDDR4 25.6 GB/s
Storage microSD (not included)
Video Encoder 4K @ 30 | 4x 1080p @ 30 | 9x 720p @ 30 (H.264/H.265)
Video Decoder 4K @ 60 | 2x 4K @ 30 | 8x 1080p @ 30 | 18x 720p @ 30|(H.264/H.265)
Camera 2x MIPI CSI-2 DPHY lan
Connectivity Gigabit Ethernet, M.2 Key E
Display HDMI and DP
USB 4x USB 3.0, USB 2.0 Micro-B
Others GPIO, I2C, I2S, SPI, UART
Mechanical 100 mm x 80 mm x 29 mm

Jetson TX2 series

SYSTEM SPECIFICATIONS
GPU 256-core NVIDIA Pascal™ GPU architecture with 256 NVIDIA CUDA cores
CPU Dual-Core NVIDIA Denver 2 64-Bit CPU, Quad-Core ARM® Cortex®-A57 MPCore
Memory 8GB 128-bit LPDDR4 Memory, 1866 MHx - 59.7 GB/s
Storage 32GB eMMC 5.1
Power 7.5W / 15W

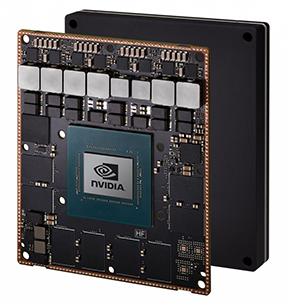

Jetson AGX Xavier series

SYSTEM SPECIFICATIONS
GAI Performance 32 TOPs
GPU 512-core Volta GPU with 64 Tensor Cores, 11 TFLOPS (FP16), 22 TOPS (INT8)
CPU 8-core Carmel ARM v8.2 64-bit CPU, 8MB L2 + 4MB L3
Memory 32GB 256-Bit LPDDR4x | 136.5GB/s
Storage 32GB eMMC 5.1
DL Accelerator (2x) NVDLA Engines* | 5 TFLOPS (FP16), 10 TOPS (INT8)
Vision Accelerator 7-way VLIW Vision Processor*
Video Encode 2x1000MP/sec, 4x 4K @ 60 (HEVC), 8x 4K @ 30 (HEVC), 16x 1080p @ 60 (HEVC), 32x 1080p @ 30 (HEVC)
Video Decode 2x1500MP/sec, 2x 8K @ 30 (HEVC), 6x 4K @ 60 (HEVC), 12x 4K @ 30 (HEVC), 26x 1080p @ 60 (HEVC), 52x 1080p @ 30 (HEVC), 30x 1080p @ 30 (H.264)
Size 105 mm x 105 mm

Jetson Xavier NX

SYSTEM SPECIFICATIONS
  10 W 15 W
AI Performance 14
TOPS (INT8)
21
TOPS (INT8)
GPU 384-core NVIDIA Volta™ GPU with
48 Tensor Cores
GPU Max Freq 800 MHz 1100 MHz
CPU 6-core NVIDIA Carmel ARM®v8.2
64-bit CPU

6MB L2 + 4MB L3

CPU Max Freq 2-core @ 1500MHz

4-core @ 1200MHz

2-core @ 1900MHz

4/6-core @ 1400Mhz

Memory 8 GB 128-bit LPDDR4x @ 1600 MHz

51.2GB/s

Storage 16 GB eMMC 5.1
Power 10W|15W
PCIe 1 x1 + 1x4

(PCIe Gen3, Root Port & Endpoint)

CSI Camera Up to 6 cameras (36 via virtual
channels)

12 lanes MIPI CSI-2

D-PHY 1.2 (up to 30 Gbps)

Video Encode

2x464MP/sec (HEVC)

2x 4K @ 30 (HEVC)

6x 1080p @ 60 (HEVC)

14x 1080p @ 30 (HEVC)

Video Decode

2x690MP/sec (HEVC)

2x 4K @ 60 (HEVC)

4x 4K @ 30 (HEVC)

12x 1080p @ 60 (HEVC)

32x 1080p @ 30 (HEVC)

16x 1080p @ 30 (H.264)

Display 2 multi-mode DP 1.4/eDP 1.4/HDMI
2.0
DL Accelerator 2x NVDLA Engines
Vision
Accelerator
7-Way VLIW Vision Processor
Networking 10/100/1000 BASE-T Ethernet
Mechanical 45 mm x 69.6 mm

260-pin SO-DIMM connector
