Equipment Advantech

Programmer

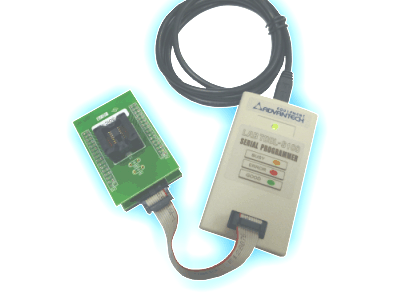

LabTool-S100 PC based Serial Flash Programmer

Features:
  • PC based USB interface serial flash programmer, support 3.3V to 1.8V Flash in VCC and I/O.
  • High programming speed, it can program at 30Mbps, it blank checking, programming and verify a 64 Mb serial flash in 53 second.
  • Support all maker's serial flash chip from 512Kb up to 2Gb.
  • USB interface : support both USB 1.1 and 2.0.
  • Friendly user interface, it has same Labtool family user interface.
  • Device insertion / continuity check before programming.
  • Mass production mode and quantity / Max failure rate alarm for production.
  • Support Windows XP / Vista / 7 / 8.1/ 10
  • On board serial flash ISP programming through flat cable. (AEC_SPI-Flash-ISP_A1.0_2013-03-14.pdf)
  • Support all package through adapters (refer to LabTool-S100 adapter list)
  • Affordable price with unbeatable performance.
  • LabTool-S100 using the internal USB power, don't need extra power supply.
  • Multi-LabTool-S100 can be connect to one PC through USB Hub, with this set up. It become a Asynchronous gang programmer in production.

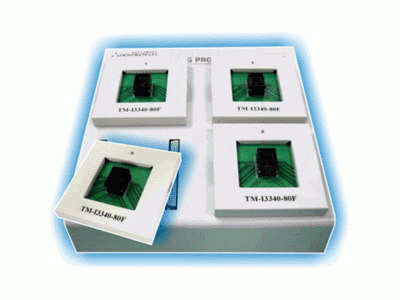

LabTool-T400 Option 100

LabTool-T400 Turbo Flash Gang Programmer is four sockets PC-based Gang Programmer. It features four independent isolated modules, extremely high speed in writing flash memory chip. It supports 3.3V, 2.7V, 1.8V and 1.2V chip in both VCC and I/O without low voltage converter and handles 8/16/32 bit flash chip in different package through adapter modules, up to 128Gb flash can be support. The LabTool-T400 is an ideal programmer for customers in GSM, 3G Mobile, PDA, Internet router and others.
Features
  • Support 3.3V to 1.2V flash memory chip in VCC and I/O without low voltage converter.
  • Flash chip support up to 128G bit.
  • Extremely high speed: it blank check a 64M bit flash chip in 1.6 seconds, program the STM28W640CT (4 word programming algorithm) within 11.5 seconds, verify within 3.2 seconds.
  • USB interface: support USB 1.1 or 2.0
  • One PC can connect up to 16 unit Labtool-T400 to perform Asynchronous programming
  • Device insertion /continuity check before programming.
  • Target quantity and Max failure rate alarm.
  • Supports Windows 98SE / ME / 2000 / XP / Vista(32bit) / 7 / 8.1 / 10
  • 1 year warranty

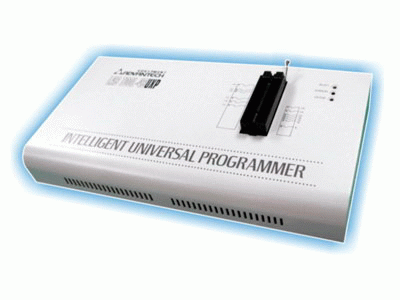

LabTool-48UXP Intelligent Universal Programmer

The LabTool-48UXP features universal pin driver, each pin can supply four different voltage, ground, it also can be configurable as TTL high/low levels with pull-high/pull-low, high-speed clock and high impedance. This advanced pin design lets you program any DIL device of up to 48 pins without needing an adapter. The LabTool-48UXP's on-board intelligence reduces system overhead to a minimum. The LabTool-48UXP has 100% more performance then its predecessor product in program the high density flash chip, it can program a Intel 32 M bit flash chip in less then 60 seconds.

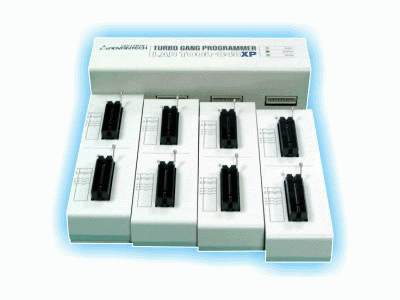

LabTool-848XP Turbo Gang Programmer

The LabTool-848XP is a gang programmer, which works through your PC's USB port or parallel port. It features 8 pcs fully isolated 48-pin ZIF sockets, extremely high throughput, standard 5V and 3V chip support, device insertion and continuity check. With PC-based design the device update through software gives customer more flexible and quick access to the new chip support. The LabTool-848XP supports EPROM, EEPROM, FLASH in the introduction. Future software update will include 87C5x, 89C5x , and PIC16Cxx microprocessor. The LabTool-848XP has flexible design. If customer has special chips that not in our standard support list, we provide a special program that allow the LabTool-848XP become a customize special chip production gang programmer.
  • 8 independent fully isolated 48-pin ZIF sockets
  • Support Flash, EPROM, EEPROM, Microprocessor with 5 Volts and 3 Volts
  • Program 8 pieces 8 MB Flash chips within 45 seconds
  • Auto-sense, self-start with standard/semi-concurrent mode
  • Independent modules allow flexible configuration
  • Universal adapters for 48TSOP/44PSOP/40TSOP Flash chips support
  • Customized MCU support
  • Device insertion and continuity test
  • Project file save/load function
  • USB or parallel port interface with auto-switch power supply
  • Supports OS : Windows 2000 / XP / Vista(32bit) / 7(32bit) / 8.1(32bit) / 10(32bit) (Parallel port) Windows 2000 / XP / Vista(32bit) / 7 / 8.1 / 10 (USB port)
  • 1 year warranty
  • Software update via Internet

Adapter

  • Delivery: contact AEC for actual lead time.
  • Payment: T/T in Advance
  • Term: FOB USD Taiwan. All price are subject to change without notice.
  • Order amount under USD200 will be charged USD15 for special handling fee.

Media Converter

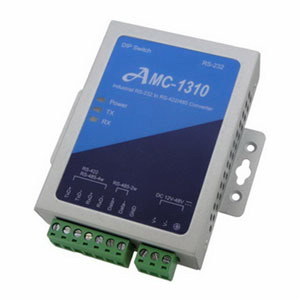

AMC-1310 : Industrial RS-232 to RS-422/485 Converter

The standard RS-232 protocol has been widely used in most of industrial equipments for serial port communication. Based on the differential protocol of RS-422/485, they offer better transmission speed, wide range and networking capabilities. Hence, the AMC-1310, industrial RS-232 to RS-422/485 converter takes the important interface and popular to be deployed in the industrial communication network for longer distance and higher reliable applications. It provides complete signal conversion between RS-232 and RS-422/485.
Features
  • RS-232 to RS-422/485 converter
  • Speed up to 921.6Kbps
  • Auto baud rate and direction control
  • 3KV isolation and 15KV ESD protection
  • Wide range power input (12V to 48Vdc)
  • Wide operating temperature (-40 to +70°C)
  • Configuration by DIP switch
  • Terminator and biasing resisters setting by DIP switch
  • Din-Rail mount or wall mount robust housing

AMC-2120 : Industrial USB to 2-Port RS-232 Converter

The standard RS-232 protocol has been widely used in most of industrial equipments for serial port communication. The USB interface also has been built in the personal computer or embedded system device. RS-232 and USB offer better transmission speed, wide range and networking capabilities. Hence, the AMC-2120, USB to 2-port RS-232 converter takes the important interface and popular to be deployed in the industrial communication network and higher reliable applications. It provides complete signal conversion between USB and RS-232 protocol.
  • Compliant USB 1.1/2.0 for up to 480 Mbps transmission
  • All RS-232 speed up to 921.6 Kbps
  • 15KV ESD protection for all RS-232 signals
  • 3KV optical isolation between USB and RS-232 port
  • Low power consumption with USB bus powered
  • USB Drivers provided for Windows and Linux operating system
  • Din-Rail mount or wall mount robust housing
  • Wide operating temperature (-40 to 70°C)

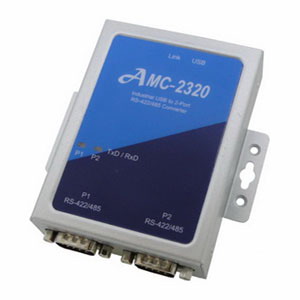

AMC-2320 : Industrial USB to 2-Port RS-422/485 Converter

The RS-485/422 protocol has been widely used in most of industrial equipments for serial port communication. The USB interface also has been built in the personal computer or embedded system device. RS-485/422 and USB offer better transmission speed, wide range and networking capabilities. Hence, the AMC-2320, USB to 2-port RS-422/485 converter takes the important interface and popular to be deployed in the industrial communication network and higher reliable applications.
  • Compliant USB 1.1/2.0 for up to 480Mbps transmission
  • 2-port RS-422/485 speed up to 921.6 Kbps
  • Supports terminator and biasing functions
  • 15KV ESD protection for all RS-422/485 signals
  • 3KV optical isolation between USB and RS-422/485 interface
  • Low power consumption with USB bus powered
  • USB Drivers provide for Windows and Linux operating system
  • Din-Rail mount or wall mount robust housing
  • Wide operating temperature (-40 to 70°C)

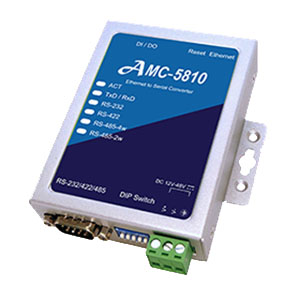

AMC-5810 : Industrial Ethernet to Serial Media Converter

The AMC-5810 is an Ethernet to serial RS-232/422/485 converter. The device provides Ethernet communication with 10/100Mbps, the serial interface RS-232/422/485 configuration with webpage management and the DIP switch for position terminator or biasing resistor on theRS-485/422 communication network, the digital input (DI) and digital output (DO) channels for logic control or event trigger.
  • Ethernet 10/100Base-TX transmission
  • RS-232/422/485 speed up to 230.4 Kbps
  • 15KV ESD protection for all RS-232/422/485 signals
  • 2.5KV isolation between device and RS-232/422/485 interface
  • Supports terminator and biasing resistor via DIP switch
  • Supports 3-channel DI and 3-channel DO for event trigger
  • Supports ARP, TCP/IP, ICMP, DHCP, HTTP, Telnet, and SMTP
  • Built-in webpage remote management for serial operation mode setting, DI/DO situation, and firmware upgrade
  • Din-Rail mount or wall mount robust housing
  • Operating temperature (0 to 70°C)

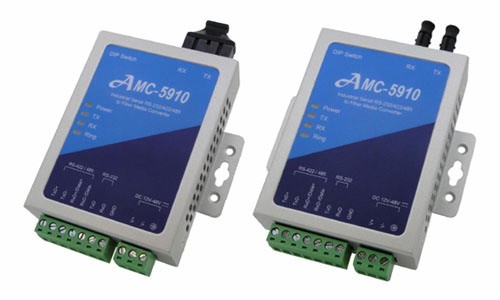

AMC-5910 : Industrial Serial RS-232/422/485 to Fiber Media Converter

The standard RS-232/422/485 protocols and interfaces have been widely used in most of industrial equipments for serial port communication. The fiber media material offers ideal insulation and long distance advantages for data transmission. The AMC-5910 series combine many advantages of RS-232/422/485 and fiber media for serial communication. The Peer to Peer (PTP) and Serial Fiber Ring (SFR) modes are typical application modes in the networking communication. The serial interface mode and optical mode are easy setting with DIP switch.
  • Industrial serial to fiber media converter
  • Speed up to 115.2 Kbps
  • Peer to Peer or SFR for serial fiber ring communication
  • Auto baud rate and direction control
  • Multi-mode 5 km, Single mode 60Km
  • 15KV ESD protection
  • Wide range power input from 12V to 48Vdc
  • Wide operating temperature (-40 to +70°C)
  • Terminator and biasing resisters by DIP switch
  • 1X9 Standard ST/SC Fiber Transceiver
