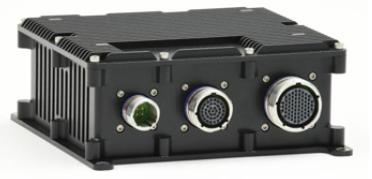

The SABRE family from Diamond Systems offers an attractive combination of features, ruggedness, and economy. These systems feature full IP67 rating and MIL-STD-810G compatibility and are ideal for vehicle and other harsh environment applications. Standard configurations offer quick turn solutions based on proven designs, while the system architecture supports quick and low-cost customization with the addition of PC/104 and PCIe MiniCard I/O modules.
The Sabre series consists of two product categories:
- SabreCom : rugged computer systems featuring Intel Atom and Core processors and packed with I/O.
- SabreNet : rugged Ethernet switches, featuring 8-24 10/100/1000 gigabit copper ports and up to 2 10G fiber ports.

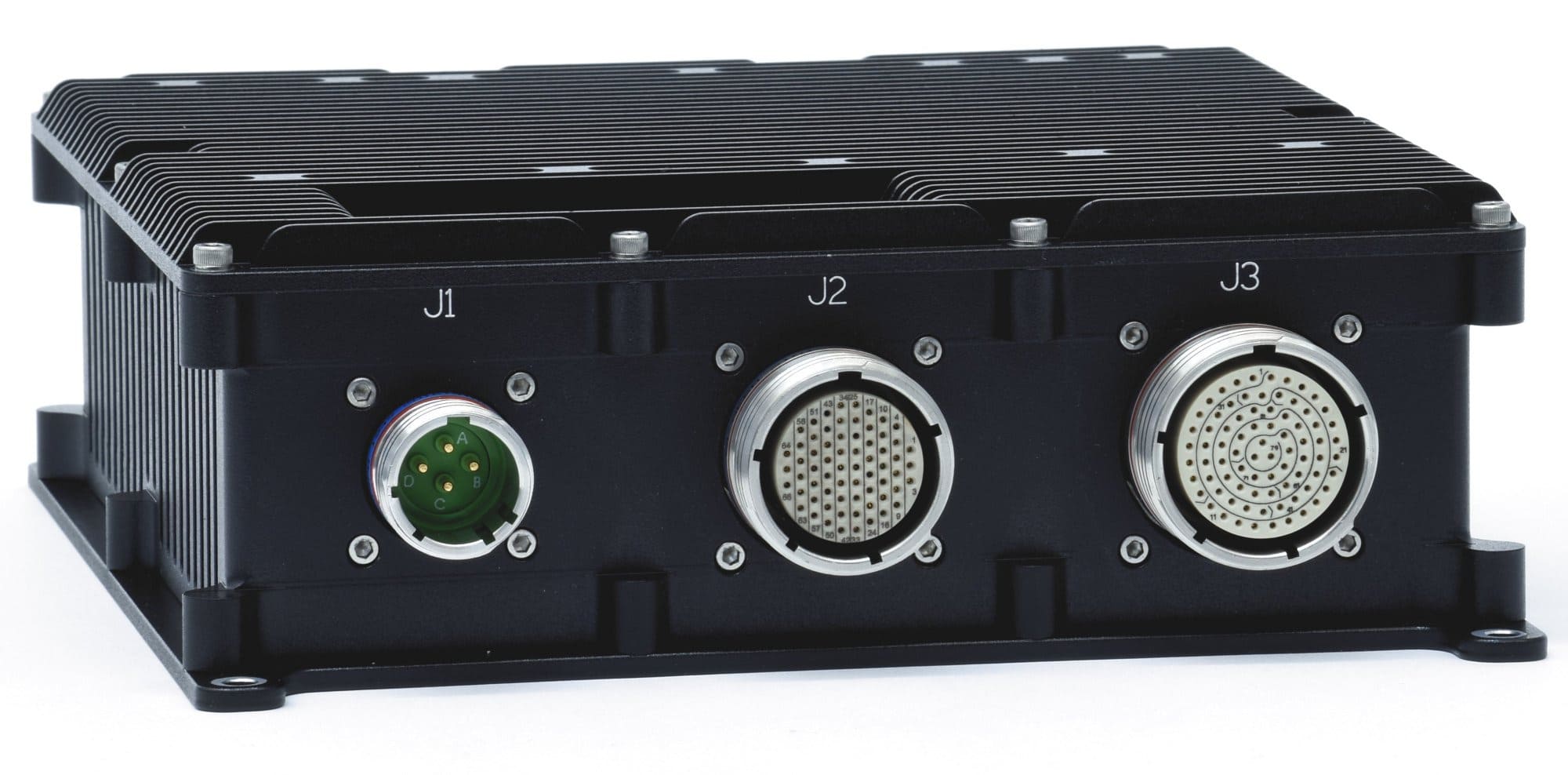

The SabreCom series of rugged mission computers brings an exciting level of price/performance to the market. These systems are based on Diamond's line of rugged, I/O-rich single board computers and COM-based SBCs:.
Aries features the Intel "Bay Trail" E3845 quad core CPU and a full set of PC I/O and optional data acquisition features. It features PC/104 and PC/104-Plus expansion capability for applications requiring additional I/O.
Venus features the Intel "Skylake" 6th generation Core i7 CPU with onboard 4GB RAM expandable up to 20GB. It features PCI-104 and PCIe/104 OneBank expansion capability to support additional high-speed I/O such as additional Ethernet ports or video capture.
Zeta offers "Bay Trail" and "Apollo Lake" CPU options using a family of interchangeable COMs (computer-on-modules). This design offers significant size and weight reduction over traditional single-board computers. I/O expansion is achieved with PCIe minicards. Models are available with integrated data acquisition or GPIO.
All models include 4 serial ports with RS-232/422/485 capability, dual gigabit Ethernet, VGA and/or LCD and/or HDMI display, USB 2.0 / 3.0 ports, and GPIO. I/O expansion is readily accomplished through a combination of PC/104 and PCIe minicard expansion sockets.
The SabreNet series of rugged Ethernet switches features multiple port counts and both copper and fiber technologies. Copper ports are triple speed 10/100/100 with auto-negotiation, auto MDI/MDIX, auto power-down of unused ports, jumbo frame capability, non-blocking wire speed performance, and a wide range of other important embedded features. Built-in configuration and control software provides Layer 2+ switch functionality. Standard connectivity is via MIL-DTL-38999 connectors with stainless steel finish (type 20K).
MIDI systems provide an efficient solution for customers seeking a Box PC with wide temperature performance and abundant I/O. MIDI systems feature expansion-ready front panels with removable cover plates to expose additional connector cutouts. The enclosure can easily accommodate up to two additional PC/104 style I/O modules or PCIe MiniCards. The cover plate provides ample cooling for our rugged conduction-cooled SBCs. Table-top, wall mount, and DIN rail mounting options are all included.
MIDI systems are available in a variety of standard configurations based on our Aries (Bay Trail x86) and Eagle / Eaglet (ARM) SBCs.
- MIDI-Aries : Expandable Box PCs based on Intel Bay Trail E3845 processor
- MIDI-Eagle : Expandable Box PCs based on Toradex Apalis ARM processor modules
