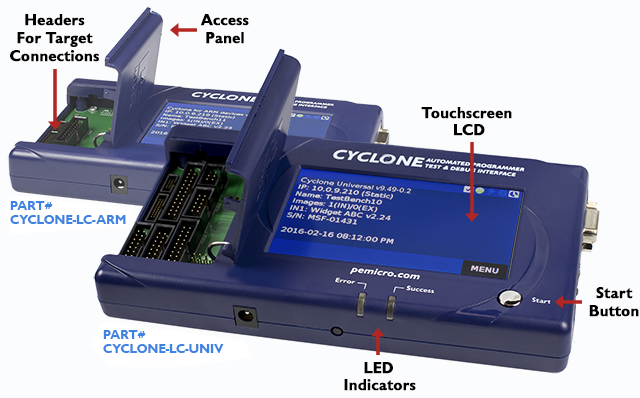

CYCLONE LC
-
- Stand Alone Programming : Program targets with a PC or without a PC
- Standard Automation Control : PC based SDK, Console, and GUI Control
- Multiple Communications Interfaces :USB 2.0, Ethernet, and Serial interfaces
- Touchscreen LCD Display :Easy to use touch screen interface with remote access
- Target Power Management :Ability to provide and switch power to a target
- Auto-Counting & Shared Serial Numbers :Programming can incorporate sophisticated serialization
Ethernet Based Debugging :Compatible with many development IDEs
- On-Board Storage : Encrypted internal memory, 16MB, 8 images
- Target Power Management :Ability to provide and switch power to a target
- Auto-Counting & Shared Serial Numbers :Programming can incorporate sophisticated serialization
- Ethernet Based Debugging : Compatible with many development IDEs
- On-Board Storage : Encrypted internal memory, 16MB, 8 images

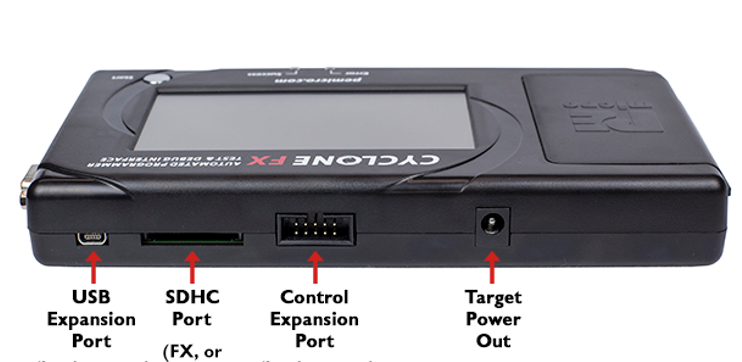

CYCLONE FX
The Cyclone FX supports following features in addition to above Cyclone LC features
- High Speed Programming
Download rates reaching 75 Mbits/s - Larger On-Board Storage
1+ Gigabyte of encrypted internal memory stores 200+ programming images - Target Current and Voltage Measurement
