- Large 4.3”TFT color display
- 3-slot mainframes with built-in 6 ½ digit DMM
- Basic 0.0035% DCV
accuracy

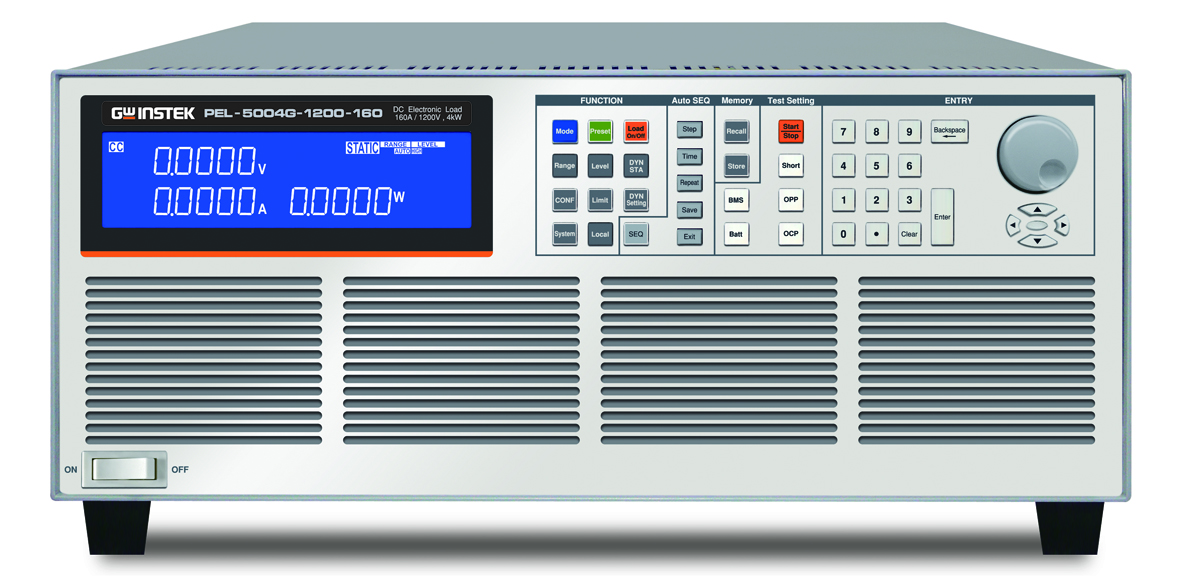

- Master-slave control up to 1 Master and 7 Slaves
- SEQ Load Mode's programmable function
- 5” TFT LCD
- Voltage/Current Test Freq. Bandwidth: DC, 0.1Hz~ 100kHz
- Waveform Display : V (Voltage), I (Current), P (Wattage)
accuracy
- Built-in 4 Sequence Output Modes, up to 2500 Points
- OVP /OTP Protection Function
- 7” LCD color Display
- 0.08% Basic Accuracy
- Displaying Four Measurement Results Simultaneously From 17 Selectable Measurement.
- DC 12kV / IR 5kV
- Comply with IEC 61010-2-034
- 7” TFT LCD
- Manual / Auto Mode
- 4.3”TFT LCD Display
- Setting resolution: 1mV / 0.1mA; read back resolution: 0.1mV / 0.1mA
- Low ripple noise: ≦1mVrms/ ≦2mArms
- AC input is three-phase only, phase voltage 380 V to 415 V±10 %)
- Supports 1P2W, 1P3W, 3P4W output
- Standard interfaces: RS-232C, USB, LAN

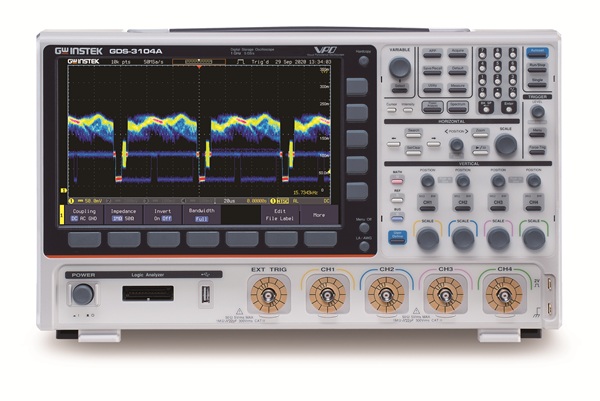

- Bandwidth: 1 GHz
- Sample rate: 5 GSa/s
- Channels: 2 or 4 Input Channels
- Per Channel 200 Mpts Memory Depth
