Hot Swap, Signal Breaker & Fault Injection
Drive Breaker Modules

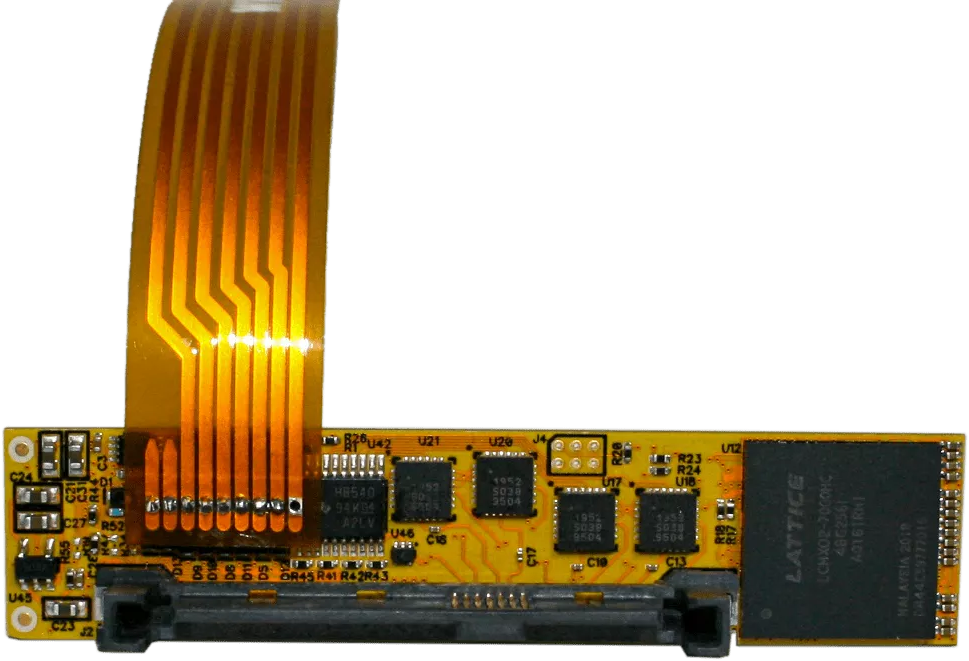

SAS Module
Automate hot-plug, dual redundancy, and fault injection testing for SAS and SATA drives.
6G
12G
24G
PCIE U.2 Modules
Perform full hot-swap and fault injection with PCIe SFF/U.2 drives.
![GEN5 PCIE U.2 Module](https://www.embeddedsingapore.com/wp-content/uploads/2022/03/pcie-u2-modules-1.jpg)
PCIE U.3 Modules
Perform full hot-swap and physical layer fault injection with GEN4 PCIe SFF/U.3 drives.
![GEN4 PCIE U.3 Modules](https://www.embeddedsingapore.com/wp-content/uploads/2022/03/gen4-pcie-u-3.jpg)
PCIe U.3 Modules (Gen5)
Perform full hot-swap and physical layer fault injection with GEN5 U.3 drives, introducing our updated Gen5 PCIe U.3 Module
![GEN5 PCIE U.3 Modules](https://www.embeddedsingapore.com/wp-content/uploads/2022/05/pcie-gen5-u3.png)
EDSFF Modules
Perform full hot-swap and physical layer fault injection with EDSFF drives.
![GEN4 EDSFF X8 BREAKER MODULE](https://www.embeddedsingapore.com/wp-content/uploads/2022/03/Gen4-EDSFF-x8.jpg)
Gen4 EDSFF x8 Breaker - New Versions
Perform full hot-swap and fault injection with the latest Gen4 PCIe E1 and E3 drives.
![GEN4 EDSFF X8 BREAKER MODULE](https://www.embeddedsingapore.com/wp-content/uploads/2022/06/edsff-x8-breaker.png)
Card Breaker Modules
Gen5 AIC to U.2 Breaker Module
Gen5 PCIe requires a rethink of test equipment configuration. Using this module, you can test a U.2 drive directly from an AIC slot without any additional adapters or cables
![Gen5-AIC-to-U2-Breaker](https://www.embeddedsingapore.com/wp-content/uploads/2022/12/Gen5-AIC-to-U2-Breaker_01.png)
Gen5 MCIO to U.2 Breaker Module
Gen5 PCIe requires a rethink of test equipment configuration. The Gen5 MCIO to U.2 breaker module allows you to test a U.2 drive direct from an MCIO based Host card: SerialCables stock suitable Host Cards.
![Gen5 MCIO to U.2 Breaker Module](https://www.embeddedsingapore.com/wp-content/uploads/2022/12/QTL2804-Gen5-MCIO-to-U-02.png)
GEN3 AIC Modules
Hot-swap, lane configuration, fault injection, signal driving and power injection automation for PCIe GEN3 slots.
![GEN3 X8 PCIe HS Card Module](https://www.embeddedsingapore.com/wp-content/uploads/2022/03/gen3-x8-pcie-hs-card-module.jpg)
GEN4 AIC Modules
Fitting into a standard x16 PCIe slot, this PCIe module allows advanced, repeatable testing of PCIe devices.
![gen4-pcie-hs-card-module](https://www.embeddedsingapore.com/wp-content/uploads/2022/03/gen4-pcie-hs-card-module.jpg)
GEN5 AIC Modules
This module performs hot-swap, lane configuration, fault injection, signal driving and power injection automation for PCIe Gen5 slots.
![GEN5 PCIE X16 BREAKER MODULE](https://www.embeddedsingapore.com/wp-content/uploads/2022/03/gen5-pcie-x16-breaker-modul.jpg)
GEN3 M.2 Modules
Hot-swap, lane configuration, fault injection and signal driving for M.2 M-Key drives.
![M.2 M-KEY Vertical Card Module](https://www.embeddedsingapore.com/wp-content/uploads/2022/03/m-2-m-key-vertical-card-mod.jpg)
GEN4 M.2 Modules
Ideal for testing both consumer and enterprise-grade SSDs, this module allows hot-swap, lane configuration, fault injection and signal driving for Gen4 M.2 M-Key drives.
Note: New variant with added PLN/PLA control available
![GEN4 M.2 M-Key Vertical Breaker Module](https://www.embeddedsingapore.com/wp-content/uploads/2022/03/gen4-m-2-m-key-vertical-bre.jpg)
Cable Pull/Breaker Modules
SAS/SATA Modules
Perform automated cable hot-swap and fault injection on SAS and SATA Cables.
![6G ESATA Cable Module](https://www.embeddedsingapore.com/wp-content/uploads/2022/03/6g-esata-cable-module.jpg)
SFP/QSFP Cable Modules
Perform automated cable hot-swap and fault injection on SFP+/QSFP+ cables.
![SFP+ Cable Module](https://www.embeddedsingapore.com/wp-content/uploads/2022/03/sfp-cable-module.jpg)
SFP28/QSFP28 Cable Modules
Perform automated cable hot-swap and fault injection on SFP28/QSFP28 cables.
![QSFP28 Cable Module](https://www.embeddedsingapore.com/wp-content/uploads/2022/03/qsfp28-cable-module.jpg)
RJ-45 Cable Modules
The Ethernet Cable Module is an automated solution for hot-swap testing and fault injection on RJ-45 cables. Automation provides easier, faster and more detailed testing. Consistent, repeatable results reduce time to market and improve reliability.
![RJ-45 Cable Modules](https://www.embeddedsingapore.com/wp-content/uploads/2022/03/rj-45-cable-module.jpg)
PCIe Cable Modules
Perform automated cable hot-swap and fault injection on SFF-8644 based PCIe cables.
![GEN4 EXTERNAL PCIE BREAKER MODULE](https://www.embeddedsingapore.com/wp-content/uploads/2022/03/external-pcie-cable-module.jpg)
OCULINK Cable Modules
Perform automated cable hot-swap and fault injection on OCulink cables.
![OCULINK CABLE MODULE](https://www.embeddedsingapore.com/wp-content/uploads/2022/03/oculink-cable-module.jpg)
USB Modules
This USB cable-pull module is an automated solution for hot-swap testing and fault injection on USB 3/Type-C cables. Automation provides easier, faster, and more detailed testing.
![USB 3.0 Cable Module](https://www.embeddedsingapore.com/wp-content/uploads/2022/03/usb-3-0-cable-modules.jpg)
Canister Modules
Canister Modules
Perform automated hot-swap and fault injection on SBB 1.0 and 2.0 Canister Controllers.
![SBB 2.0 Canister Module](https://www.embeddedsingapore.com/wp-content/uploads/2022/03/sbb-2-0-canister-module.jpg)
Breakouts
Breakouts
Convert a U.2 SFF drive to fit in a U.3 host for testing.
![Gen4 U.3 to U.2 Adapter](https://www.embeddedsingapore.com/wp-content/uploads/2022/03/gen4-u-3-to-u-2-adapter.jpg)
Automotive Multi-Protocol Breaker
The Automotive Multi-Protocol Breaker is a versatile tool from Quarch, a standalone fault injection and monitoring device for testing critical communication links in the automotive industry and beyond.
Using simple pluggable terminal blocks, the breaker connects to a wiring loom. It can support many communication links from RS-232 to 1000Base T1 Ethernet.
![Multi Protocol Link Breaker](/wp-content/uploads/2022/12/multi-protocol-link-breaker.png)
