2D Inspection

SX RANGE

• 4x-200x magnification
• Greenough design with excellent optical clarity
• Range of stand configuration

3D Inspection

LYNX EVO

• 6x-60x magnification
• LED lightning and substage illumination
• Multi-axis and Ergo stand

MANTIS 3rd gen

• Up to 20x magnification
• Unique large high quality optical stereo image
• Ergonomic design for user

3D Inspection

LYNX EVO

• 6x-60x magnification
• LED lightning and substage illumination
• Multi-axis and Ergo stand

MANTIS 3rd gen

• Up to 20x magnification
• Unique large high quality optical stereo image
• Ergonomic design for user

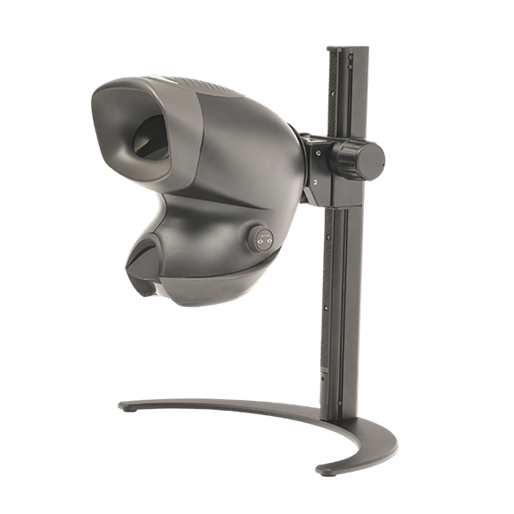

OPTA

• Perfect view with depth perception
• 4x and 6x magnifications

2D Inspection

ProteQ VISO

• X0.45 to X2.0 magnification
• 18° display tilt
• 360° Oblique and Direct Viewer

DRV-Z1

• 6x-186x magnification
• 3D view, capture and share
• Unique 3D without the need for special glasses

DRV STEREO CAM

• 8.4x-700x magnification
• 3D view, capture and share
• Unique 3D view without the need for special glasses

2D Inspection

VE CAM

• Compact full HD digital microscope: minimises work space
• High quality custom-made optics and an 8MP camera: high quality imaging for efficient inspection

EVO CAM HALO

• 4K Ultra HD 30fps for Inspection
• Intelligent features – Auto lens ID
• Super wide dynamic range – brightness and contrast

EVOCAM ICON

• Camera – Full HD
• Interfaces – HDMI, USB3 (PC connection), USB2 (stand alone image capture), WiFi (optional)
• Reporting features – Image capture, time stamp

EVO CAM II

• 30:1 optical zoom range with magnification up to 300x
• Exceptional high resolution 1080p/60fps image quality, Effortlessly capture and record and PC Control Option

Wave LED

• 1.75x-4.75x magnification
• 2 x 6W dimmable LED modules
• Edge clamp as standard. Other mounts available
• Internal-spring, 30″ or 45″ parallel, 3 pivot K-arm

Circus LED

• 1.75x-4.75x magnification
• 10W total energy consumption
• Edge clamp as standard
• Steel arm with aluminium head. Fully enclosed neck design.

KFM LED

• 1.75x-4.75x magnification
• 2 x semi-circular 9W dimmable LED modules
• The flexibility of the joint between the head and the arm makes exact positioning very easy

LFM LED G2

• 5” glass lens with either a 3 or 5 diopter primary lens.
• Bench magnifier is equipped with full circle, fl icker-free illumination, resulting in virtually shadow-free viewing.

BenchKam

• Exclusive to Vision Engineering
• Easy image capture
• Maintains 3D view available through the magnifier
