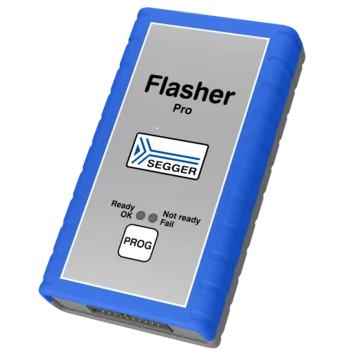

Flasher PRO is a programming tool for microcontrollers with on-chip or external Flash memory and ARM, RX or PPC core.
Flasher PRO is a programming tool for microcontrollers with on-chip or external Flash memory and ARM, RX or PPC core. Flasher PRO is designed for programming flash targets with the J-Flash software or stand-alone. Flasher PRO connects via USB, Ethernet or via RS232 interface to a PC, running Microsoft Windows 2000, Windows XP, Windows 2003, Windows Vista, Windows 7, Windows 8 or Windows 10 and has a built-in 20-pin JTAG connector, which is compatible with the standard 20-pin connector defined by ARM.
Flasher PRO—Professional Production Programmer
- Stand-alone JTAG/SWD programmer (Once set up, Flasher can be controlled without the use of PC program)
- Ethernet interface
- Supports internal and external flash devices
- Wide range of devices are supported
- Free firmware updates
- 128 MB internal NAND flash, used for storing configuration and data files
- Serial in target programming supported
The handheld stand-alone Flash Programmer for on-chip and external flash memory. Flasher Portable PLUS is a battery driven programming tool for microcontrollers with on-chip and/or external flash memory. It has been designed to fill the need of an extremely portable, production grade flash programmer used for in-field firmware updates.
Flasher Portable PLUS can be powered by its internal rechargeable battery or USB. Use the integrated 1,8 inch display to review your firmware and programming status.
Initial setup/preparation for stand-alone mode operation is done via the J-Flash software, also used by other Flasher models, which requires a PC running Microsoft Windows 2000, Windows XP, Windows 2003, Windows Vista, Windows 7, Windows 8 or Windows 10.
Flasher Portable PLUS also supports having up to eight configurations/image files stored on the Flasher, so one unit can be used for different targets, versions or configurations. Proper image selection is done by simply clicking a button. The currently elected image is displayed.
Flasher Portable PLUS—The Mobile Flash Programmer
- Stand-alone in-circuit-programmer (Once set up, Flasher can be controlled without the use of a PC program)
- Powered by internal battery rechargeable Li-Ion 680mAh, no external power supply required
- Full insights with the new 1,8 inch display
- Up to 10 hours programming with one battery charge
- Supports having up to eight configurations/data files being stored on Flasher
- Push button allows easy selection between multiple images/configurations stored on Flasher
- 128 MB internal memory for configuration and data file storage
- Supports ARM, Cortex, PowerPC and Renesas RX cores.
- Supports internal and external flash devices
- Free updates
- Data files can be updated via mass storage or via J-Flash
- Target interface: JTAG / SWD / FINE / SPD
- Programming speed typically between 30 KB/second and 1 MByte/second. Max. programming speed highly depends on target hardware and max. programming speed of the flash itself
- SECURITY: Flasher Portable and Flasher Portable PLUS support Authorized Flashing. It allows to limit the number of flash programming cycles and to protect the Flasher against non-authorized access in case of external production
The Flasher PRO XL is the extra-large memory version of SEGGER’s Flasher PRO. With all the same features of the Flasher PRO, the Flasher PRO XL expands upon the original’s 128 MB memory with 2 gigabytes—16 times as much internal flash memory. This memory can be used to store a variety of large program images. With its huge memory capacity, Flasher PRO XL can also program target systems running large footprint OSes such as Android, Linux, and Windows IoT.
Key features
- 2 Gigabytes of memory plus memory expandability
- High speed
- Large number of devices supported
- Flexible programming interface: Almost anything can be programmed
- Multiple status and control options
- Reliability
- Longevity
- Multi-platform: Includes setup and control software for Linux, macOS, and Windows
- No license required. No hidden costs. No future costs.
- Future proof: Software, firmware updates, and new flash loaders, are free of charge
Flasher Compact is an in-circuit flash programming tool, designed to program the internal and external memory of an MCU or SOC as well as program a (Q)SPI memory chip to which it is directly connected. Users control it in stand alone mode without the need of a PC program. Thanks to its compact nature and the mounting holes, integration into size-limited production setups is easier. Powered by USB, this stand-alone flash programmer has 128 MB of internal memory for storing firmware images and programming configurations.
Key features
- Compact universal stand-alone programmer
- Holes for mounting make target side assembly easy
- Includes the Flasher software package
- Includes the license to program all supported devices
- No additional licenses required. No hidden costs. No future costs.
- Future proof: Software, firmware updates, and new flash loaders, are free of charge

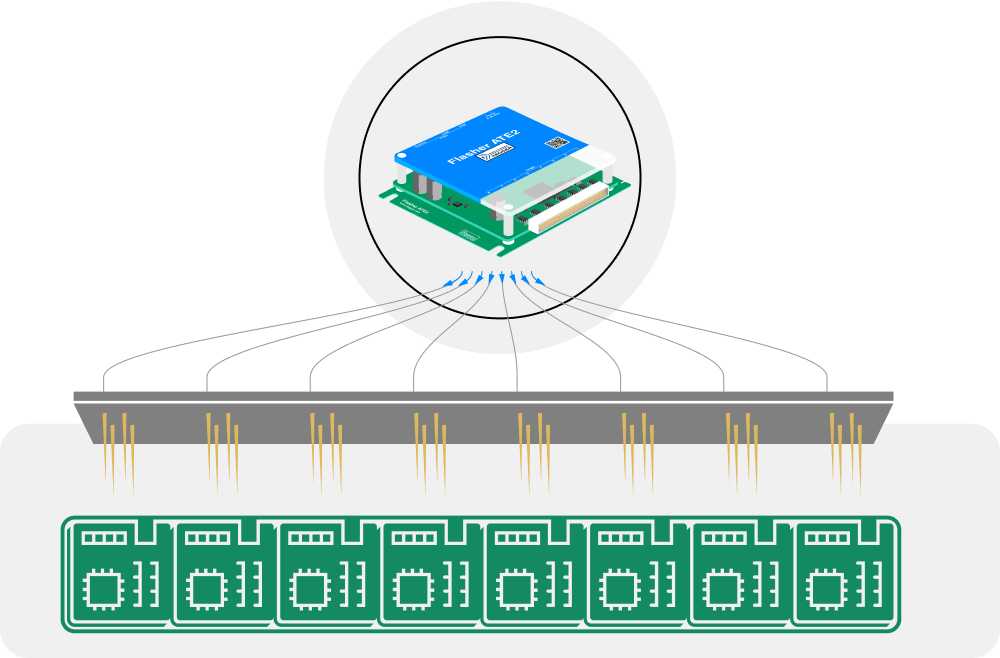

Flasher ATE2 is a robust single-board gang programmer with eight independent programming channels. It is designed for high-volume, automated production environments, particularly those with limited space, such as automated test equipment (ATE), where direct integration with automated machinery is crucial. Flasher ATE2 is tailored to users who simultaneously program multiple target devices, making it an ideal solution for manufacturers seeking optimized workflows.
Key features
- Flasher ATE2 integrates seamlessly into production workflows. As as result, setups are simplified, cabling complexity reduced, and consistentency in automated workflows supported. The use of the same ultra-fast, proven flash algorithms as found in J‑Link and Flasher devices ensures reliable device programming with minimized downtime and production errors.
SEGGER’s Flasher Hub-12 controls up to 12 Flasher Compact units serving as individual channels for parallel, high-speed gang programming. Each channel can be configured to program a different device or a different firmware image.
The Flasher Hub-12 is set up just once per channel using SEGGER’s Flasher software package. The software depends on the type of flash chip being programmed. The Hub can receive commands and send results “stand-alone” via TELNET, a desktop PC is not required for control.
Key features
- Scalability: Up to 48 individual parallel programming channels with their own circuit memory(ISP)
- Reliability
- Longevity
- Built-in web & FTP server for easy setup
- Multi-platform: Includes application software for Linux, macOS, and Windows
- No license required. No hidden costs. No future costs.
- Future proof: Software, firmware updates as well as new flash loaders are free of charge.
SEGGER’s Flasher Hub-4 controls multiple Flasher Compact units serving as individual channels for parallel, high-speed gang programming. Each channel can be configured to program a different device or a different firmware image.
The Flasher Hub-4 is set up just once per channel using SEGGER’s Flasher software package. The software depends on the type of flash chip being programmed. The Hub can receive commands and send results “stand-alone” via TELNET, a desktop PC is not required for control.
Using a single Flasher Hub-4 and multiple Flasher Compacts in combination with one or multiple SEGGER USB Hubs is the perfect solution for high-volume multi-panel and multi-target mass production.
Key features
- Scalability: Up to 24 individual parallel programming channels with their own circuit memory
- Reliability
- Longevity
- Built-in web & FTP server for easy setup
- Multi-platform: Includes application software for Linux, macOS, and Windows
- No license required. No hidden costs. No future costs.
- Future proof: Software, firmware updates as well as new flash loaders are free of charge.
