RIGOL Digital Oscilloscopes

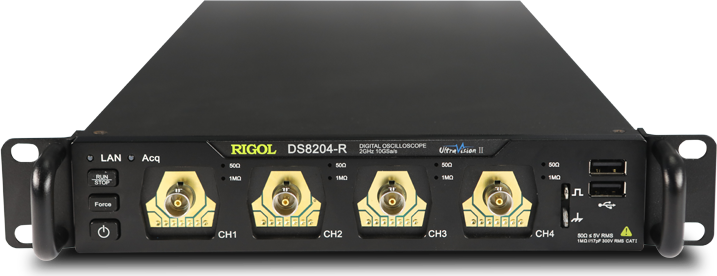

DS8000-R Series - PC based Oscilloscope - Work on the GO!

  • 2GHz
    Bandwidth
  • 10GSa/s
    Sample Rate
  • 4
    Channels
  • 500Mpts
    Memory Depth
  • 600kwfms/s
    Waveform Capture Rate
  • Compact design
  • Convenient stand-alone working mode
  • Suitable for low temperature working environment as low as - 40℃
  • Scalable to 512 channels of synchronous trigger capability

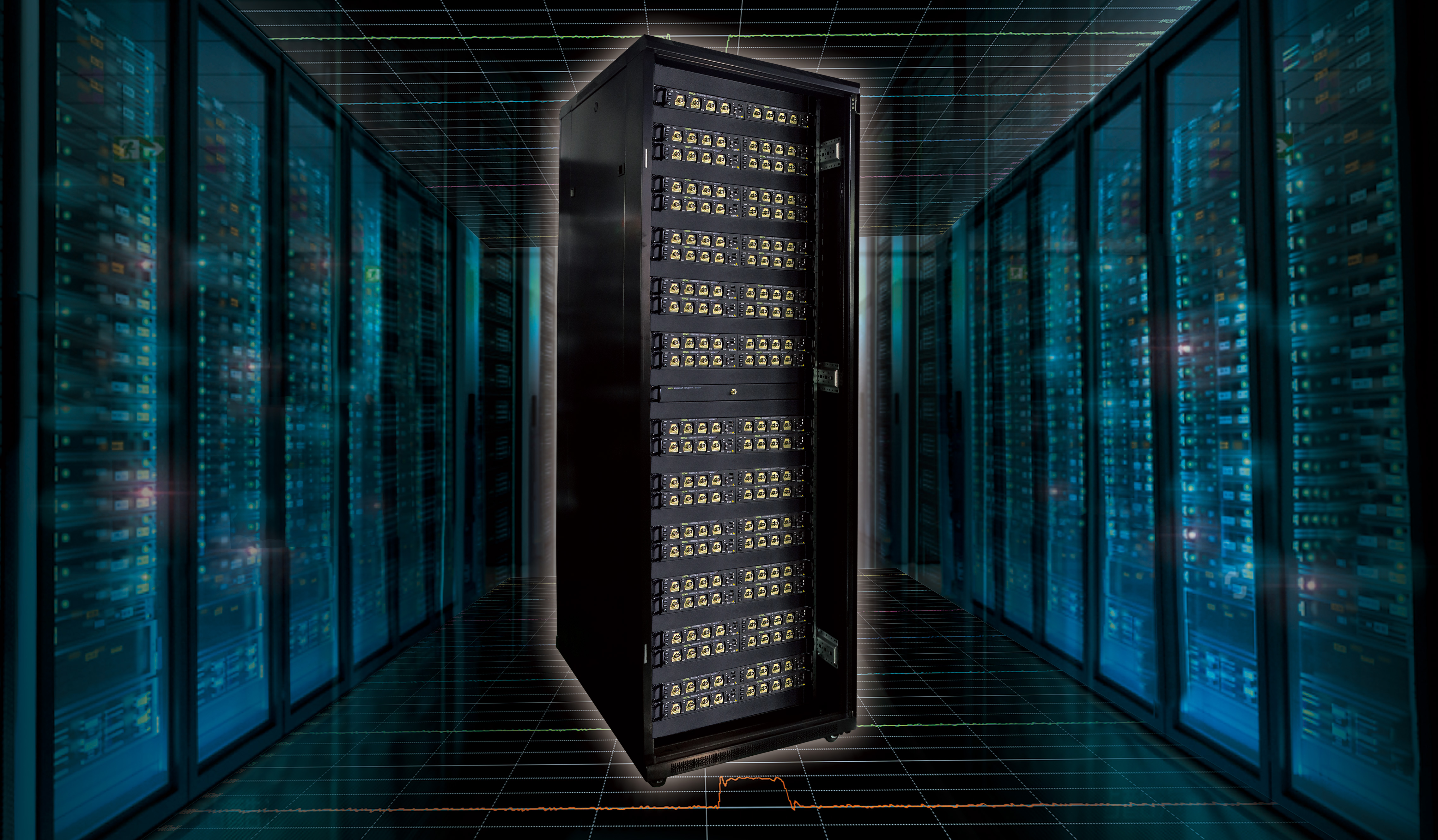

Save the rack space

Half U design helps to save the rack space. 2 units can be installed side by side in a 1U standard rack with a total of 8 channels, which efficiently utilizes valuable rack space.

Multi-channel high-speed data acquisition

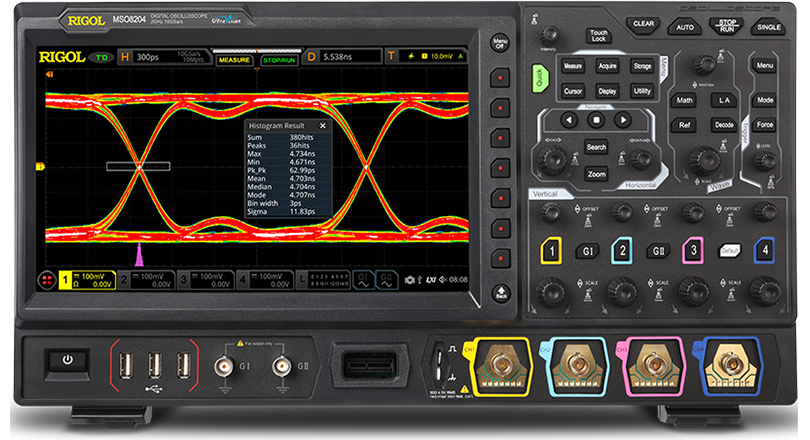

MSO8000 Series - Mixed Signal Oscilloscopes

Digital Oscilloscope

MSO8000 Series

The MSO8000 series digital oscilloscope is a mid-to high-end mixed-signal digital oscilloscope based on RIGOL's proprietary intellectual property ASIC chip and UltraVision II technology platform.

  • 2GHz
    Bandwidth
  • 10GSa/s
    Sample Rate
  • 4+16
    Channels
  • 500Mpts
    Memory Depth
  • 600kwfms/s
    Waveform Capture Rate

FEATURES

  • 2 GHz Performance for Advanced and Serial Analysis Applications
  • Full Memory Hardware Measurement
  • Trigger, decode, and visualize serial bus traffic to speed analysis and debug
  • 6-digit frequency counter + totalizer
  • 10.1'' capacitive multi-touch screen

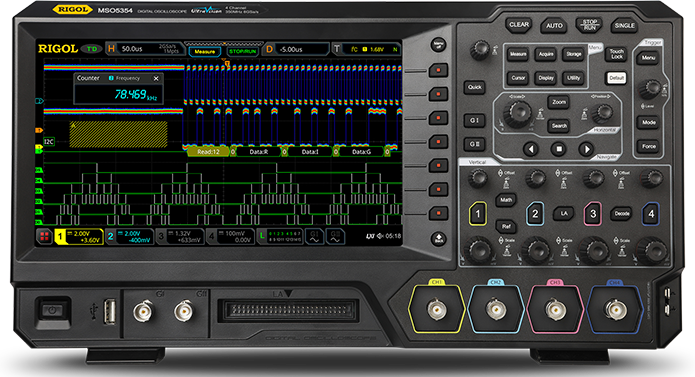

MSO5000 Series

  • 70MHz-350MHz
    Bandwidth
  • 8GSa/s
    Sample Rate
  • 4+16
    Channels
  • 200Mpts
    Memory Depth
  • 500kwfms/s
    Waveform Capture Rate

Bode Plot: Switching Power Supply Loop Analysis

Super High Sampling Bandwidth Ratio

Support Up to 450000 Frames of Hardware Waveform Recording Analysis

9 "multi Touch Capacitive Screen

7 in 1 Product Design

It integrates 7 independent instruments, including an oscilloscope, a 16 channel logic analyzer, a spectrum analyzer, an arbitrary wave generator, a digital voltmeter, a high-precision frequency meter and accumulator, and a protocol analyzer.

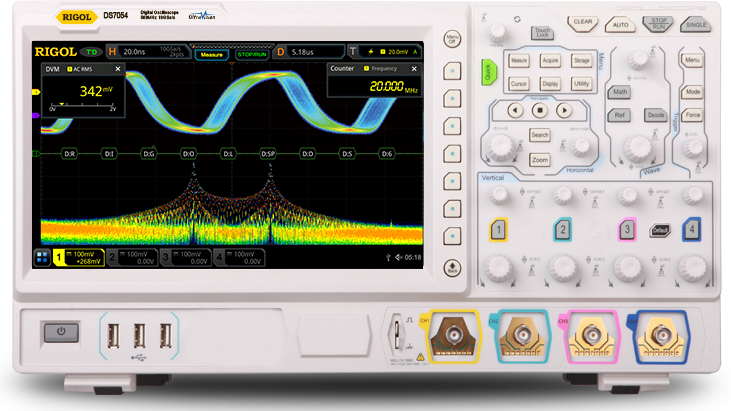

MSO/DS7000 Series

  • 100MHz-500MHz
    Bandwidth
  • 10GSa/s
    Sample Rate
  • 4+16
    Channels
  • 500Mpts
    Memory Depth
  • 600kwfms/s
    Waveform Capture Rate

FEATURES

  • 7 instruments in 1 - Oscilloscope, Logic Analyzer, Protocol Analyzer, Waveform Generator, Voltmeter, and Counter/Totalizer
  • Long Record Length
  • Protocol Analysis for today’s common serial communication buses
  • Flexible user interface combining touch, mouse, knob/button, web, and remote.

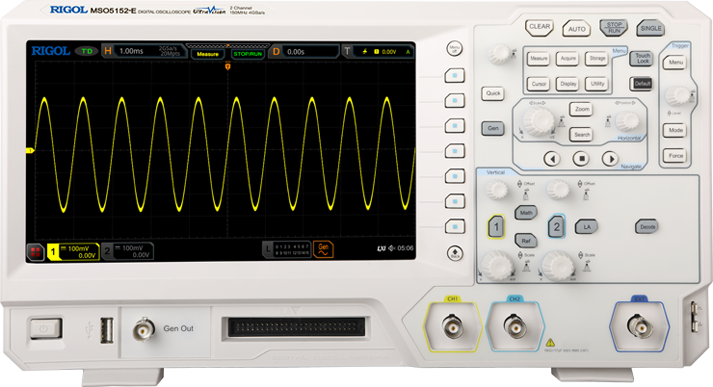

MSO5000-E Series

  • 150MHz
    Bandwidth
  • 4GSa/s
    Sample Rate
  • 2+16
    Channels
  • 100Mpts
    Memory Depth
  • 300kwfms/s
    Waveform Capture Rate

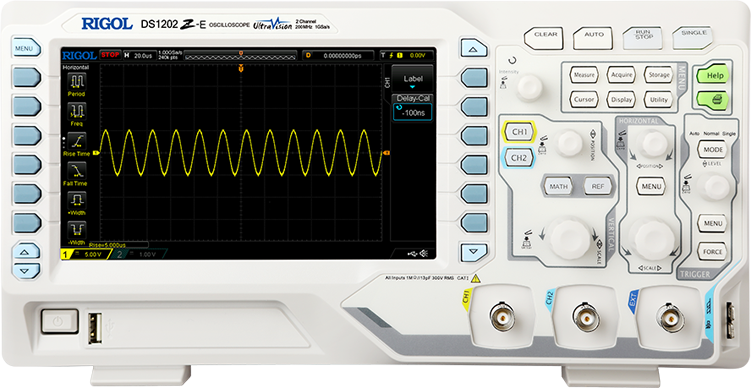

DS1000Z-E Series- Economical

  • 200MHz
    Bandwidth
  • 1GSa/s
    Sample Rate
  • 2+EXT
    Channels
  • 24Mpts
    Memory Depth
  • 30kwfms/s
    Waveform Capture Rate

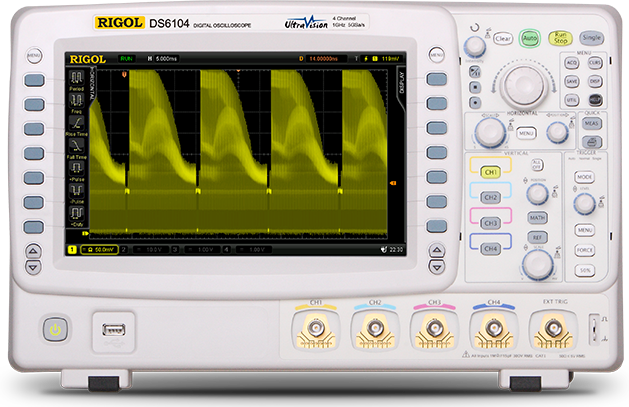

DS6000 Series Digital Oscilloscope with 1 GHz Bandwidth

  • 1MHz
    Bandwidth
  • 5GSa/s
    Sample Rate
  • 4
    Channels
  • 140Mpts
    Memory Depth
  • 180kwfms/s
    Waveform Capture Rate

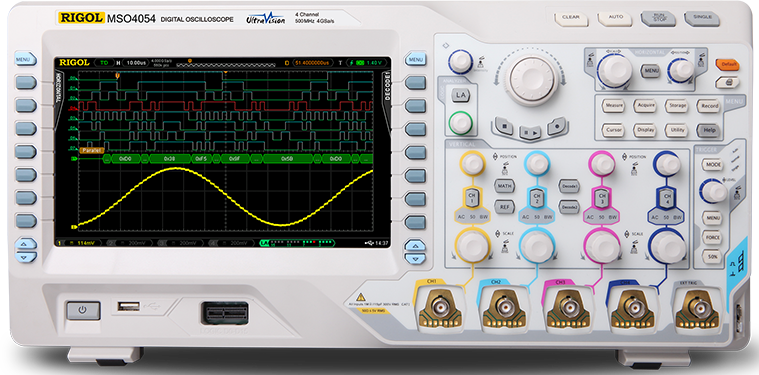

MSO/DS4000 Series and MSO/DS2000 series

  • 100MHz -500MHz
    Bandwidth
  • 4GSa/s
    Sample Rate
  • 2/4+16
    Channels
  • 140Mpts
    Memory Depth
  • 110kwfms/s
    Waveform Capture Rate

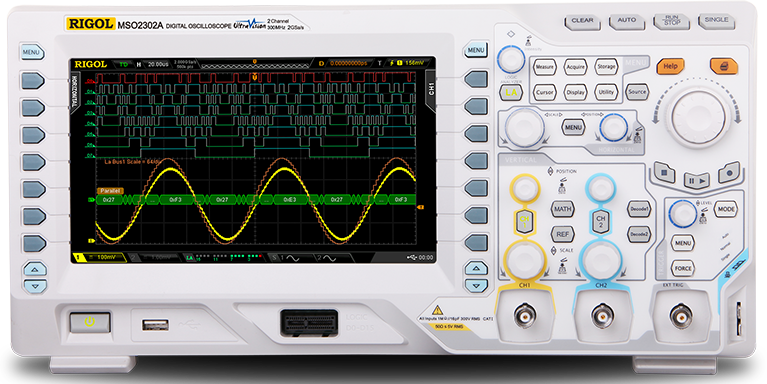

MSO/DS2000A Series

  • 70MHz -300MHz
    Bandwidth
  • 2GSa/s
    Sample Rate
  • 2+16
    Channels
  • 56Mpts
    Memory Depth
  • 52kwfms/s
    Waveform Capture Rate

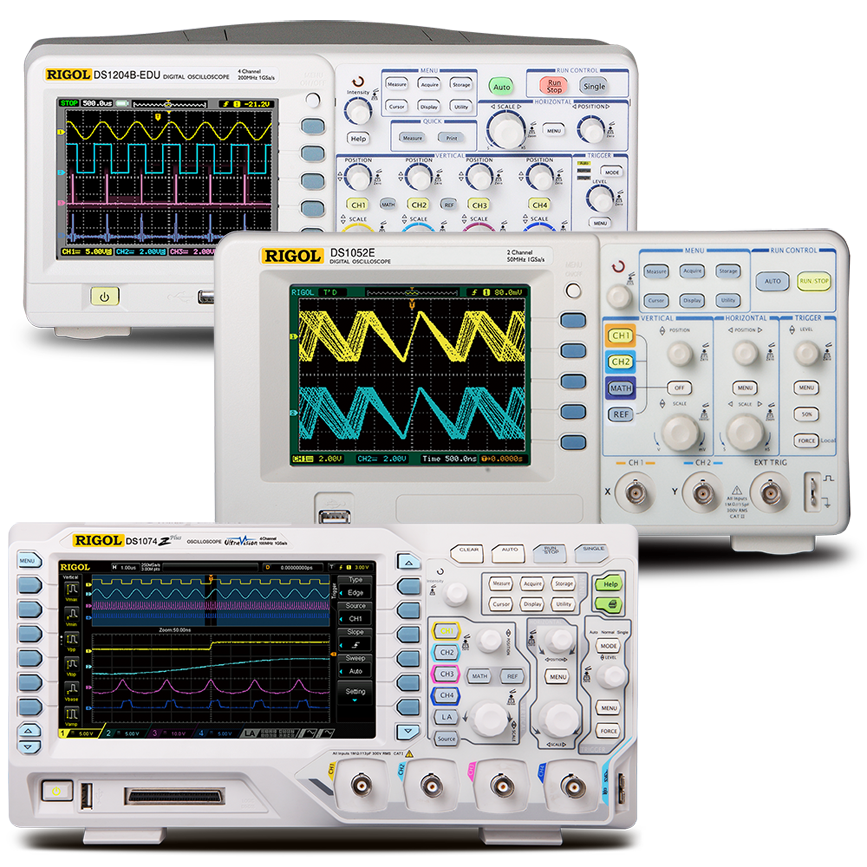

DS1000E/B/U Series and DS1000Z with Logic analyzer

  • 50MHz -100MHz
    Bandwidth
  • 1GSa/s-2GSa/s
    Sample Rate
  • 4+16 (16-ch only in Z series)
    Channels
  • 16k-24Mpts
    Memory Depth
  • 30kwfms/s
    Waveform Capture Rate
